Marine Hauler · Model MT53E-DDAR
53′ Double Drop Marine Trailer

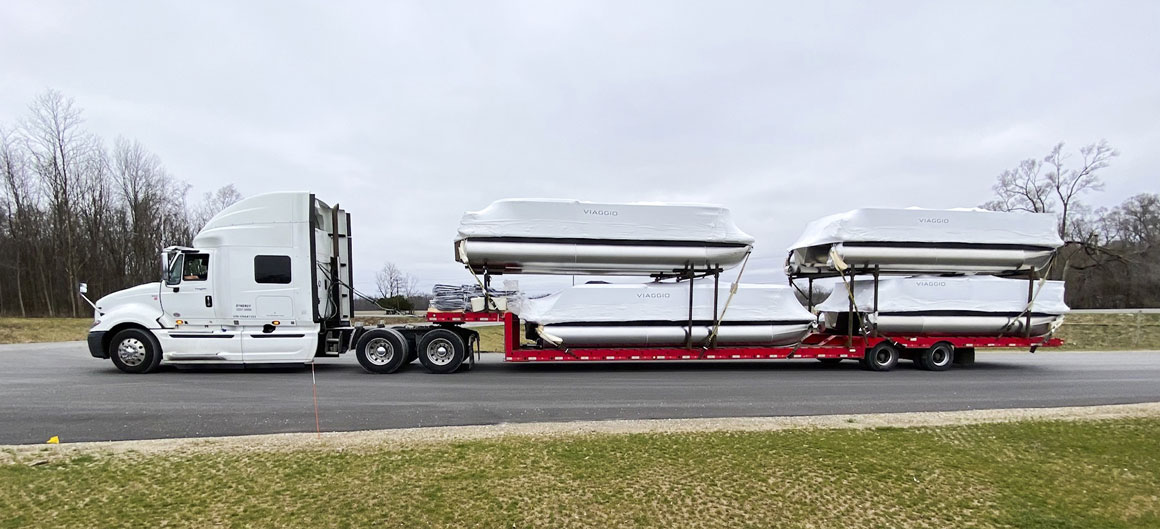

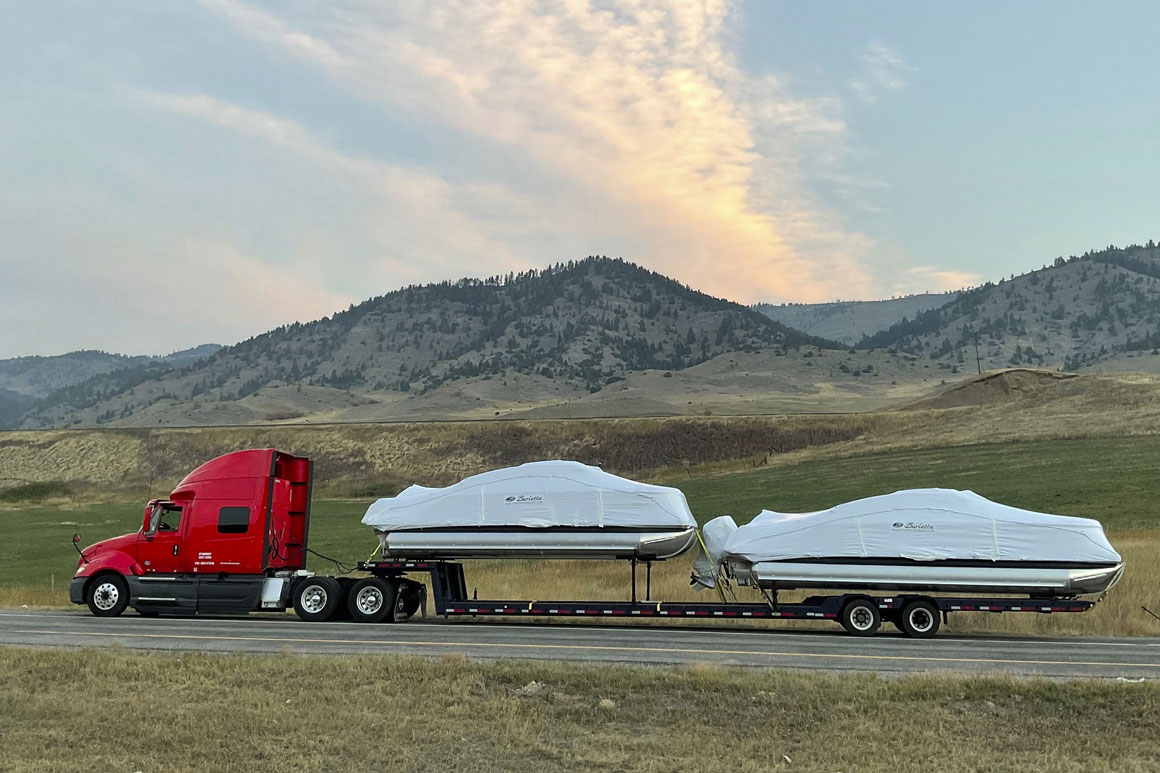

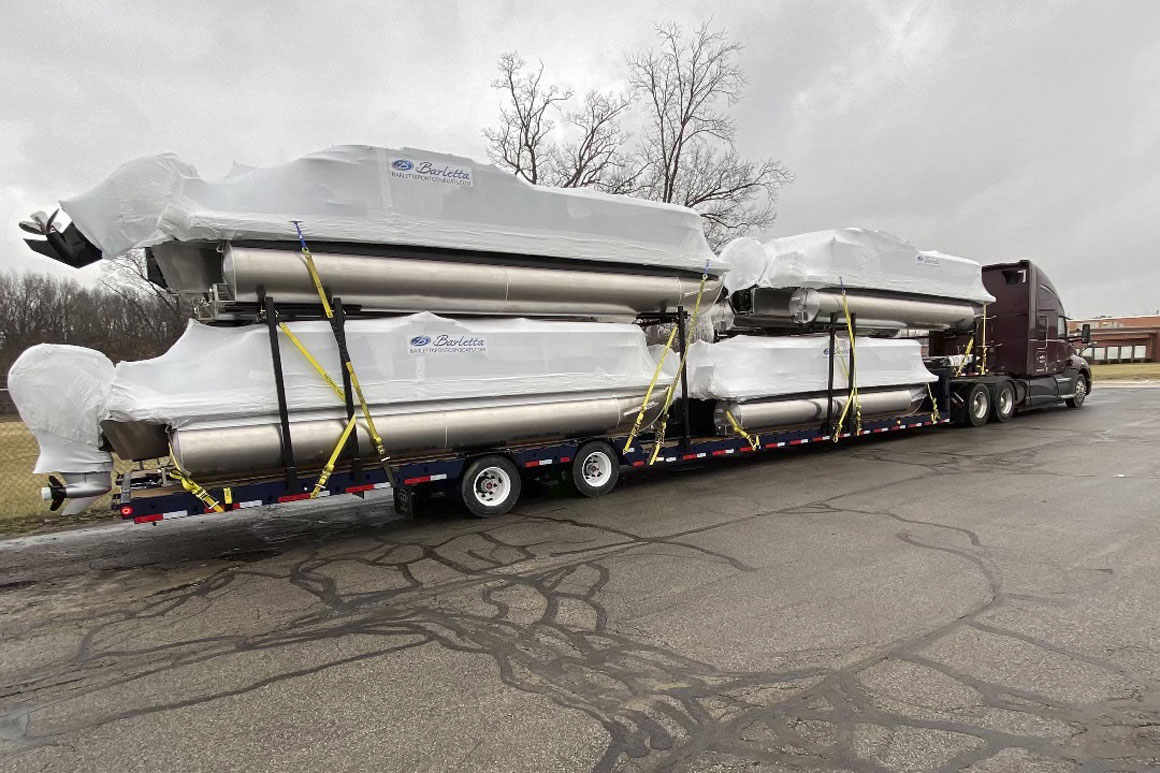

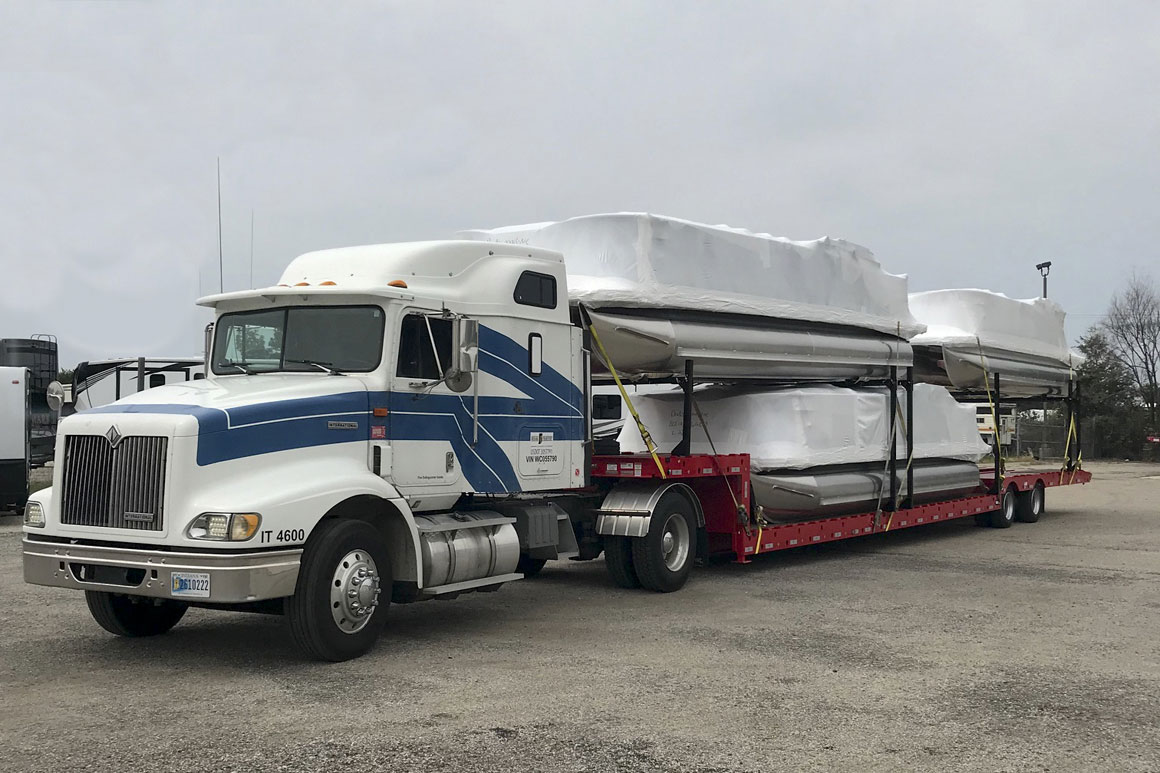

Shipshe's 53′ Double Drop Marine Trailer takes our trailer manufacturing one step further for your freight hauling needs. With our custom marine rigging kits this trailer design can transport up to four pontoons or fiberglass "V" bottom boats. Our economy model marine trailer features the following dimensions: 8′ upper deck, 30′ mid deck & 16′ rear deck. This marine trailer is offered in several configurations that can be tailored to fit your specific loadout.
Interested in this trailer?Request a Quote
Standard Features & Equipment
- 53′ OAL × 102″
- 8″ Upper Deck Beams
- 10″ Rear Deck Beams
- 12″ Mid Deck Beams
- 2 – 20K Air Ride Air Brake Drum Axles w/ ABS
- 9 – 215/75R-17.5 Steel Dual Wheels
- Air Suspension Dump Valve
- Drop Leg Landing Gear
- Double Coat Paint & Primer – DTM Durethane Black
- Sealed LED Lighting
- Spare Tire Mounted on Upper Deck
- Boat Rigging w/ Pins
- Apitong Wood Decking
- Driver Over Fenders
- 5 ft & 9 ft Aluminum Ramps w/ Storage
- DOT Inspection

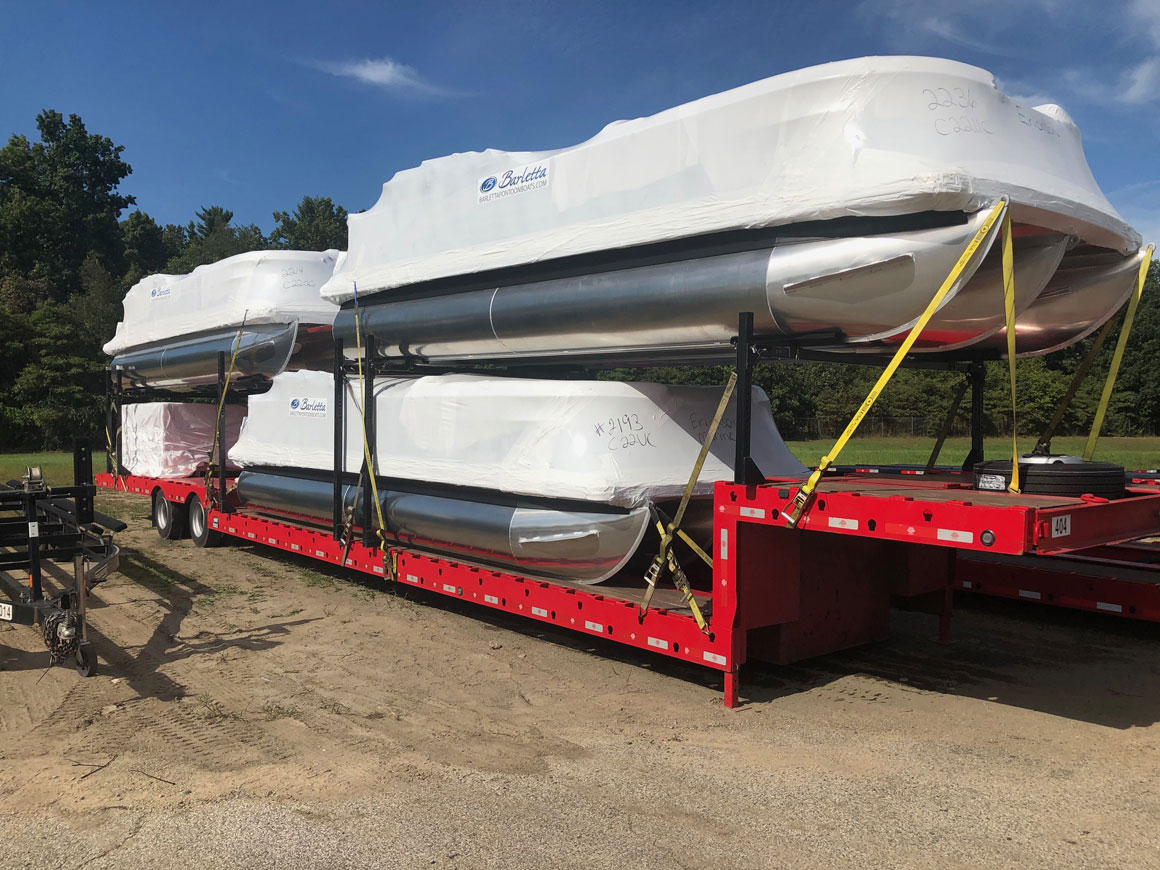

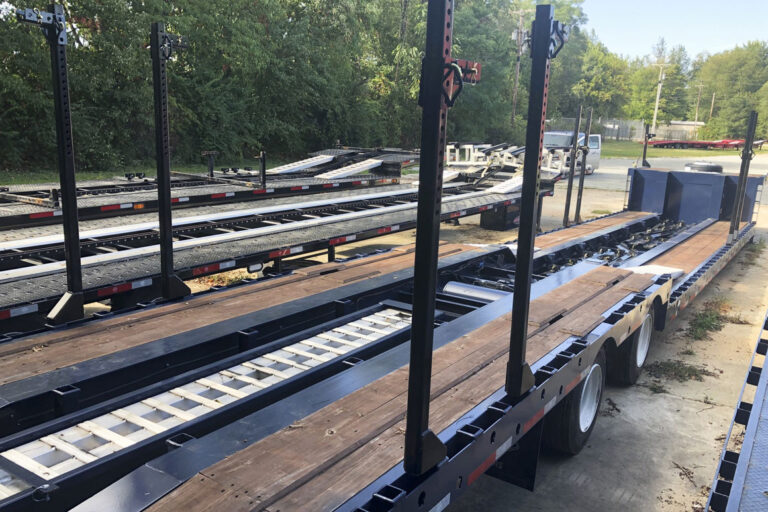

Pontoon Rigging Package
- 14 Steel Upright Posts
- 7 Steel Crossbars
- Pin On Brackets
- 8 – Single Pontoon Bunks
- 4 – Double Pontoon Bunks
- 40 – 5/8″ Pins
Custom Options (not all shown)
- Aluminum Dual Wheel Upgrade (per wheel, outer only)
- Auto Air Inflation Kit
- Custom Paint
- Stake Pockets Between Main Frame – Fiberglass Boat Hauling
- Aluminum Crossbar Upgrade (per bar)
- FET Tax on Trailers with GVWR Greater Than 26,000 lb

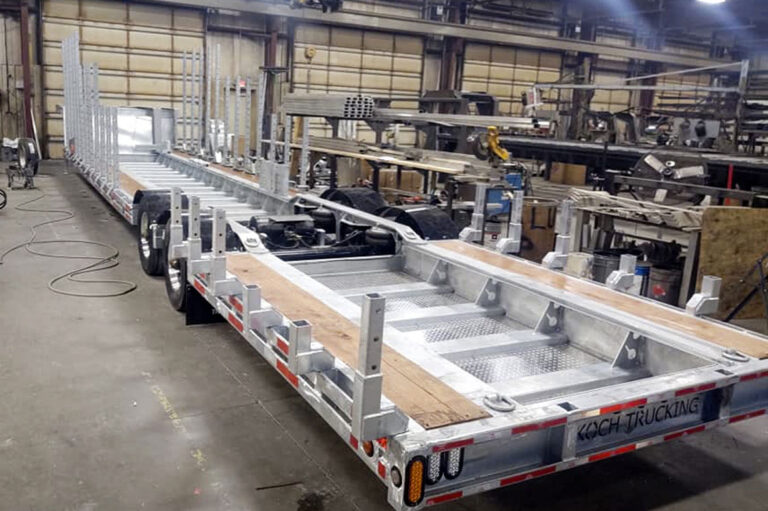

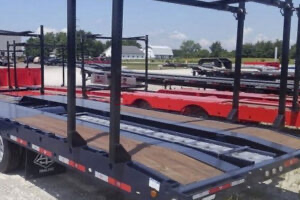

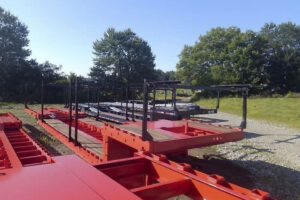

Features & Equipment
Click on image to get a closer look
