Model H53-SDAR
H53-SDAR
The RVCH model is a versatile hybrid 53′ trailer that combines the best features of our RV trailers with the added benefit of one or two car lifts. This innovative design lets you transport up to five vehicles, offering unmatched convenience and flexibility for your hauling needs.
Choose the RVCH for Maximum Versatility
Need a trailer that does it all? The RVCH is built to deliver — whether you're hauling RVs or transporting up to five cars. Get the best of both worlds with rock-solid reliability and unmatched flexibility. Perfect for dealers, fleets, and transport professionals who need one trailer that works in every situation.
Pure Car Hauling? Step Up to the CH53-WBAR5
If your business is all about cars, don't settle for anything less than the CH53-WBAR5. Engineered specifically for vehicle transport, it's the most efficient, purpose-built solution for serious car haulers.
Standard Features & Equipment
- 53′ OAL × 102″ Wide
- 1/8″ Steel Pooched Decking
- 3″ Steel Crossmembers
- Stake Pockets & Rubrail – Trailer Only
- 2 – 20K Air Ride Air Brake Drum Axles w/ ABS

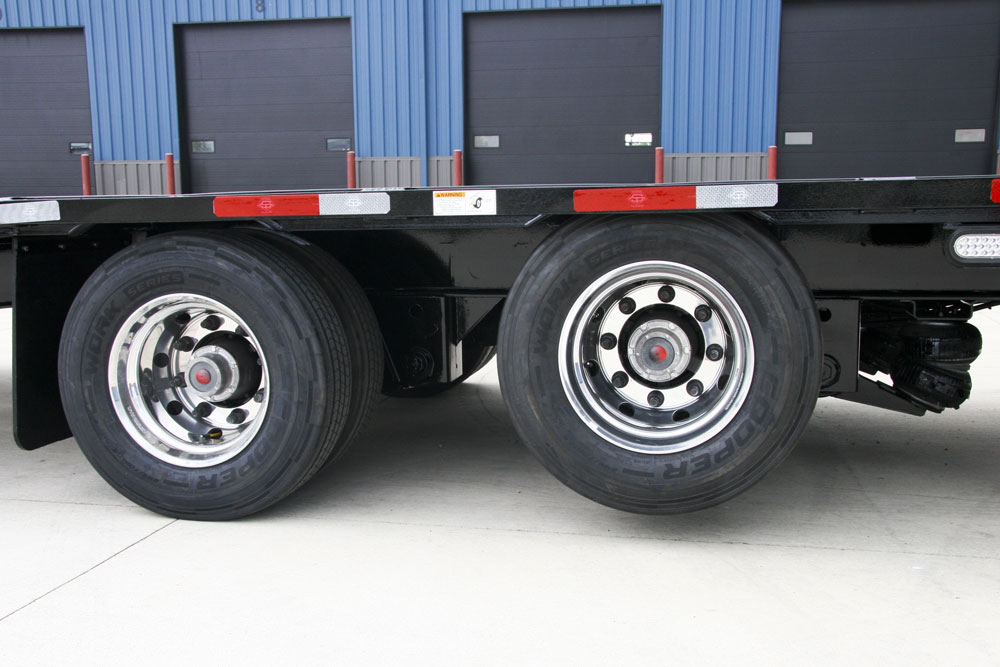

- 9 – 245/70R-17.5 Steel Dual Wheels – 18 PLY

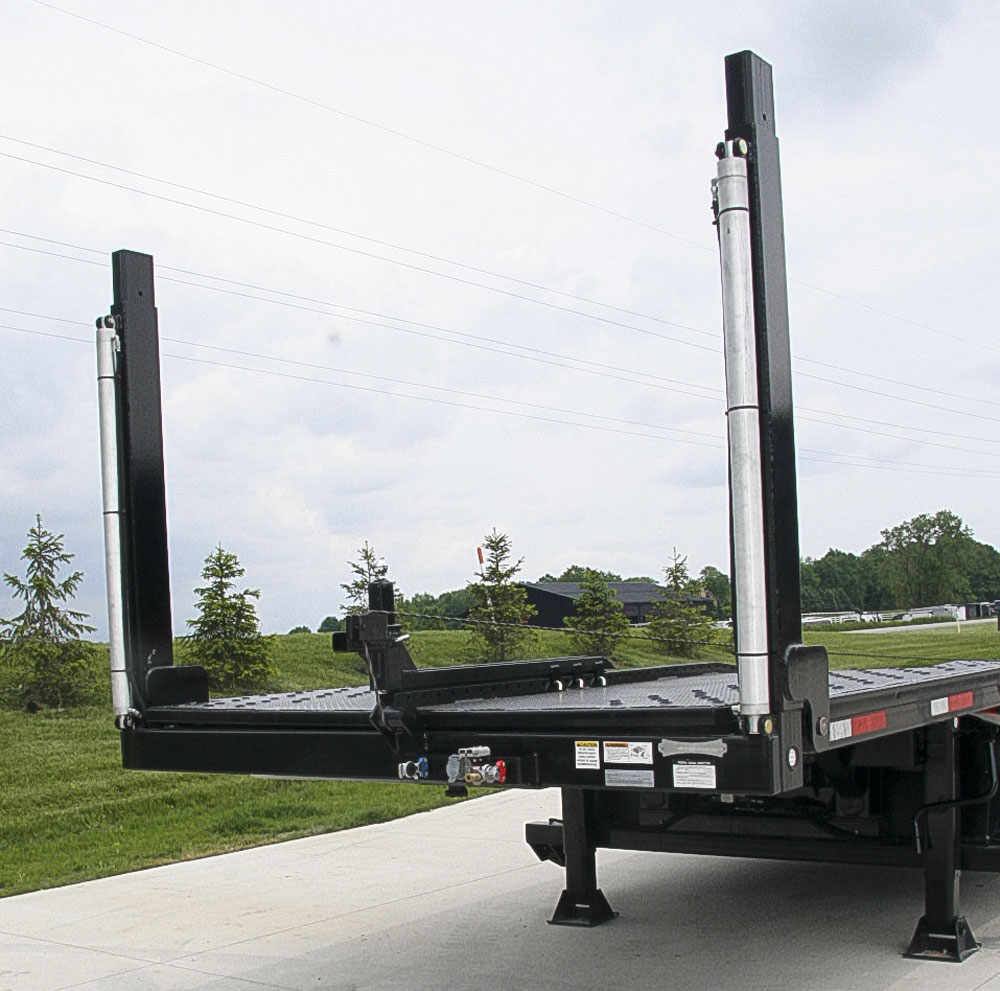

- Front Car Lift (Raise 48″ Front)
- Mid Deck Car Lift (Raise 13″ Front)
- 4 Spool Valve, Hydraulic Pump & Motor
- 2 – 48″ Steel Toolboxes w/ Aluminum Doors

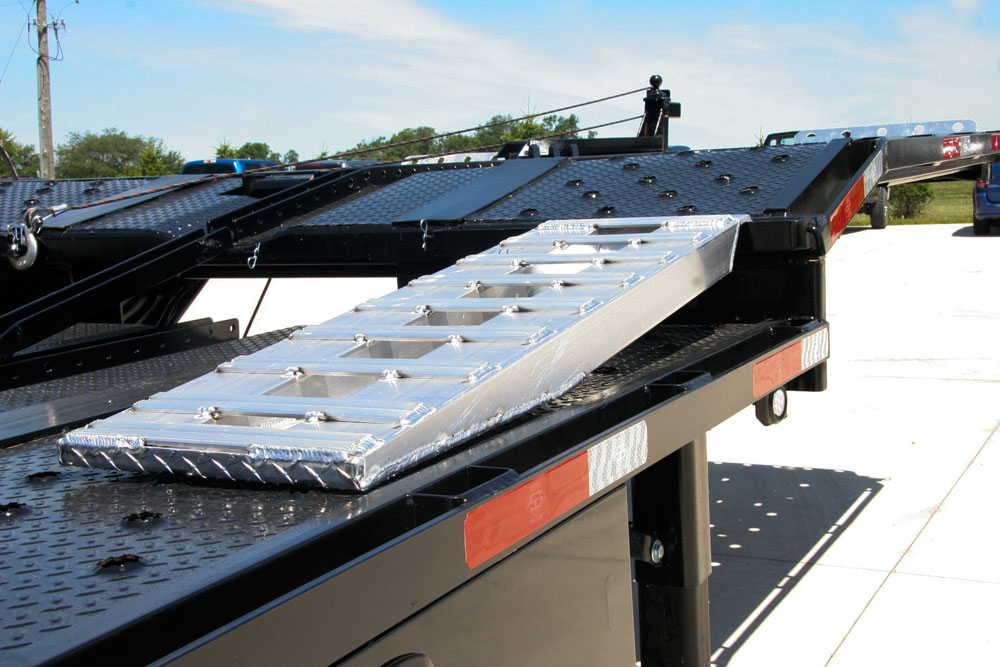

- 10 ft & 4 ft Aluminum Loading Ramps
- 2 Speed Landing Gear
- Double Coat Paint & Primer – DTM Durethane Black
- Spare Tire & Carrier
- Sealed LED Lighting
- 2 – DC27-105 Batteries in Toolbox w/ Kill Switch
- Shipshe Hauling Package
- 20 – Over the Wheel Straps & Ratchets
- DOT Inspection
Custom Options (not all shown)
- Aluminum Dual Wheel Upgrade (per wheel, outer only)
- Additional Toolbox (per box)
- Aluminum Toolbox Upgrade (per box)
- Additional Spare Tire & Carrier
- Custom Paint
- 1/4″ Aluminum Decking Upgrade
- Lowered Center Track Upgrade
- Closed Center Upgrade
- Hydraulic Shotgun Ramp Upgrade
- Lift Axle Upgrade
- 30″ Steel Front Flipout Upgrade (Lift Only)

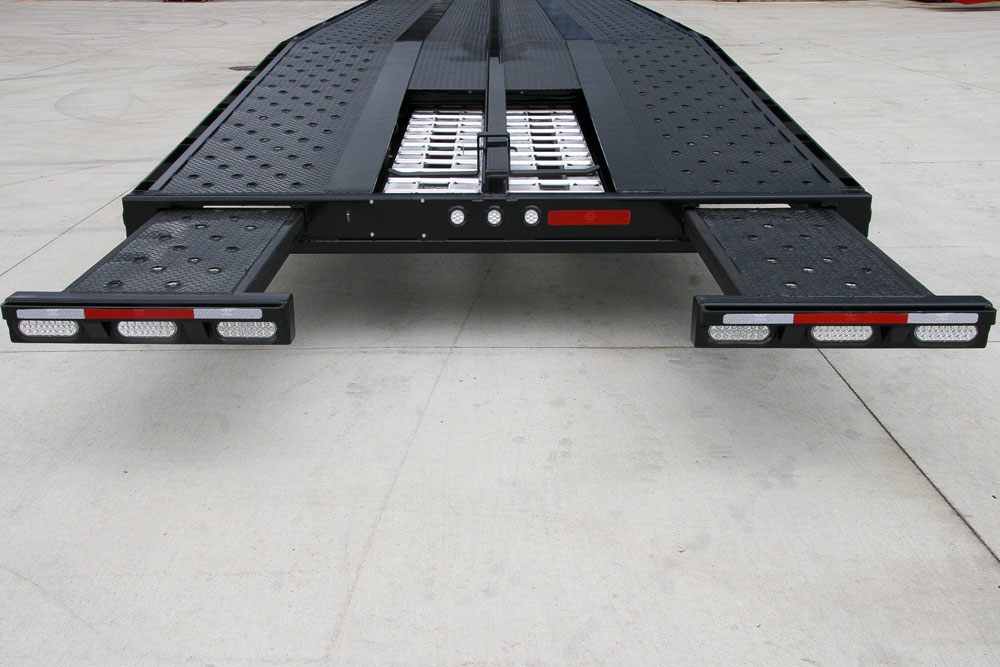

- 30″ Steel Rear Pullout Upgrade
- 2GA Wire Package (Truck)
- FET Tax on Trailers with GVWR greater than 26,000 lb
Shipshe Hauling Package
- 9,000 lb Worm Gear Winch with 65′ Wired Controller
- Lodar Wireless Winch Remote System
- Center Track Loading System
- 3 – Ball Towers
- 1 – Jack Wheel
- 48″ Front Stinger Extension with Double Flip Ball
- Forklift Plug Mounted at the Front of the Trailer
